The Story of E-Connect: Origin & Development Experience

E-Connect is a self-hosted and local-first IoT Smart Home platform, designed to optimize speed, privacy, and customization for the DIY community. The project enables comprehensive management of the lifecycle of ESP32/ESP8266 devices from GPIO configuration, pin mapping to building and flashing firmware directly in the browser.

The breakthrough of E-Connect lies in the Automation Builder, a visual graph that allows users to set up "Trigger -> Condition -> Action" scenarios without writing code. The practical applications of the project are extremely diverse: from automating lighting based on environmental sensors, controlling cooling systems based on temperature/humidity, to deploying smart irrigation or instant security alerts. With a modern Docker architecture and the MQTT protocol, E-Connect transforms discrete electronic components into a professional smart home ecosystem, operating stably and smoothly even without Internet.

1. The Origin: The Problem from the Room of Dispersed Pieces

Most meaningful projects often begin from a personal inconvenience. The story of E-Connect is no exception. It did not come from a complex business plan, but simply arose from my own room.

At that time, my room was a collection of various smart pieces scattered around:

- A small ecosystem of sensors and switches that I DIY crafted from the ESP32/ESP8266 hardware platform.

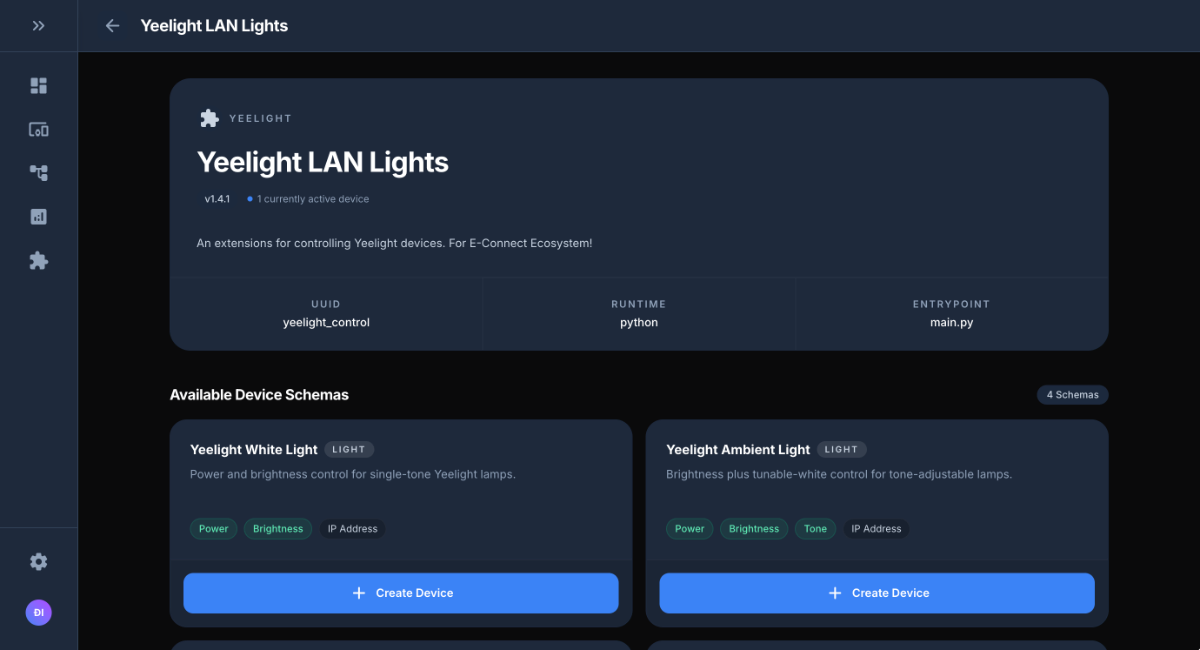

- In one corner of the room was a commercially available smart light from Xiaomi (Yeelight).

The inconvenience began to arise as soon as I wanted them to "talk" to each other. Wanting the Yeelight to automatically turn on when my DIY sensor detected motion was a simple scenario, but it brought a series of headaches:

- Closed Ecosystem: Commercial devices were locked into the manufacturer's own app and ecosystem.

- Complexity of DIY Hardware: DIY devices continuously required coding and recompiling every time I wanted to change the pin or modify the Wi-Fi configuration.

- Dependence on the Internet: Most available automation solutions relied on cloud servers, leading to high latency and the system becoming "dumb" whenever the Internet connection had issues.

2. The Motivating Breakthrough: The Need for a Local-first "Conductor"

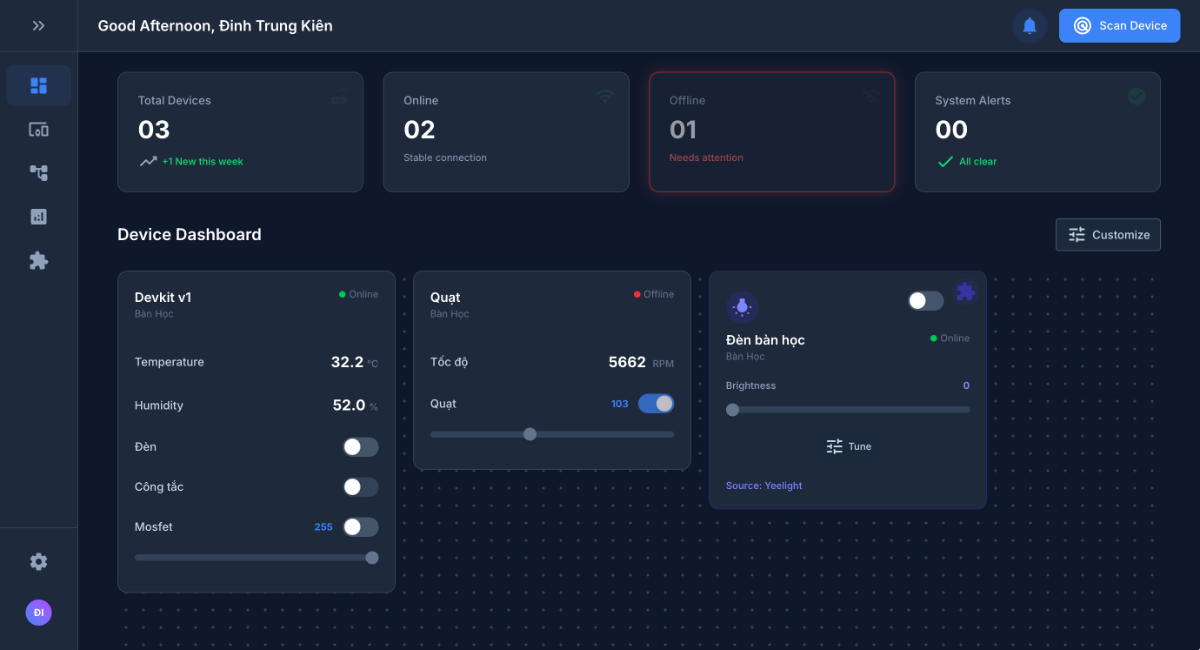

I yearned for absolute synchronization. I needed a system capable of connecting my "DIY creations" with "high-tech commercial devices" to control them all from a single dashboard. And above all: Everything needed to be handled internally at home (Local-first) to ensure near-zero latency and absolute privacy of information.

Since I could not find any solution online that had enough "openness," flexibility, and "understanding" of the DIY community, I rolled up my sleeves and designed my own solution. Breaking through the limitations of the initial makeshift code, I laid the first building blocks for E-Connect.

3. The Journey of Building the System

The journey of upgrading E-Connect went through continuous rebuilding phases to optimize the actual user experience:

Phase 1: Standardizing the Core Communication Language

I began by setting up MQTT as the "common language" for all devices in the house. All status messages from DIY sensors or commands controlling the Yeelight were standardized into lightweight packets that were transmitted instantly over the local LAN.

Phase 2: Freeing Hands from Complex Hardware Programming

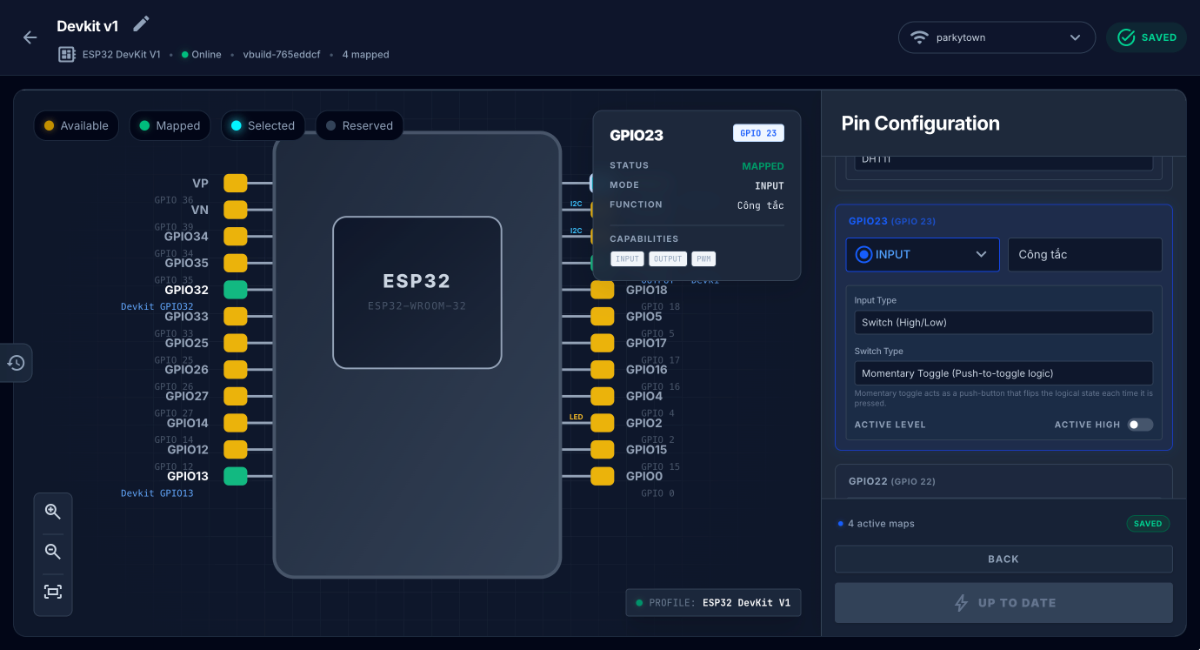

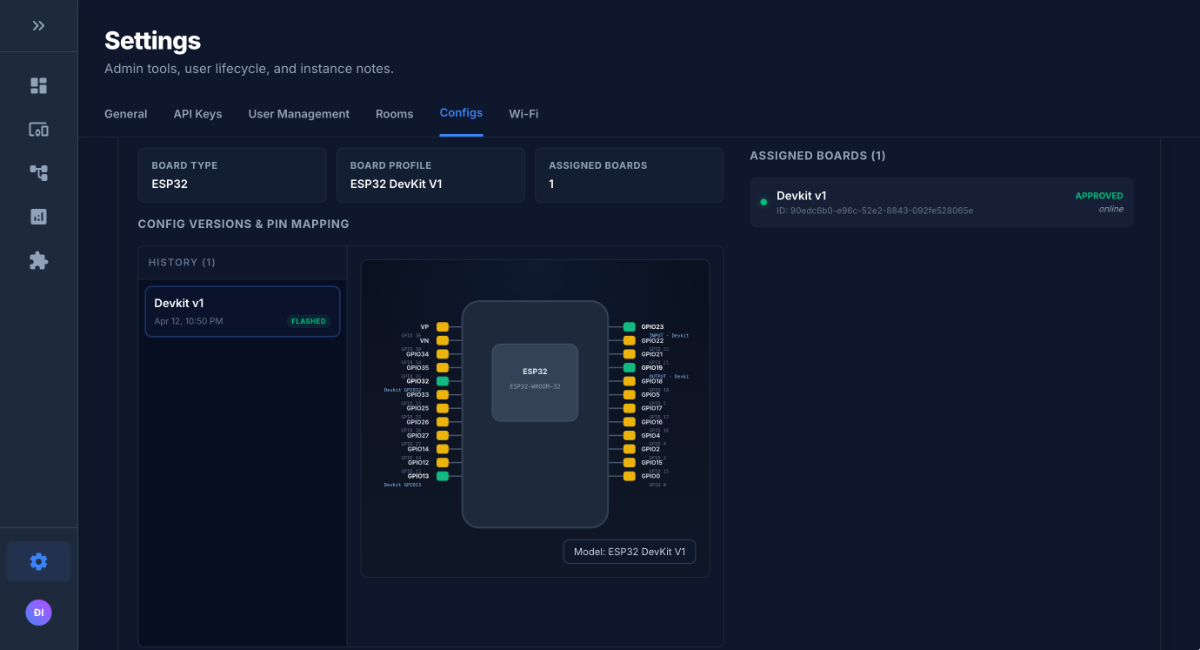

Recalling those sleepless nights spent modifying pin configurations (GPIO) and then flashing the code again, I was determined to develop the No-code DIY Builder feature. Through a highly intuitive drag-and-drop SVG interface directly in the web browser, users (and I) can freely assign component settings to the hardware, after which the backend system will automatically compile, generate Firmware, and proceed to Flash from the server, completely removing the barriers of manual programming operations.

Phase 3: Synchronizing Automation of Everything

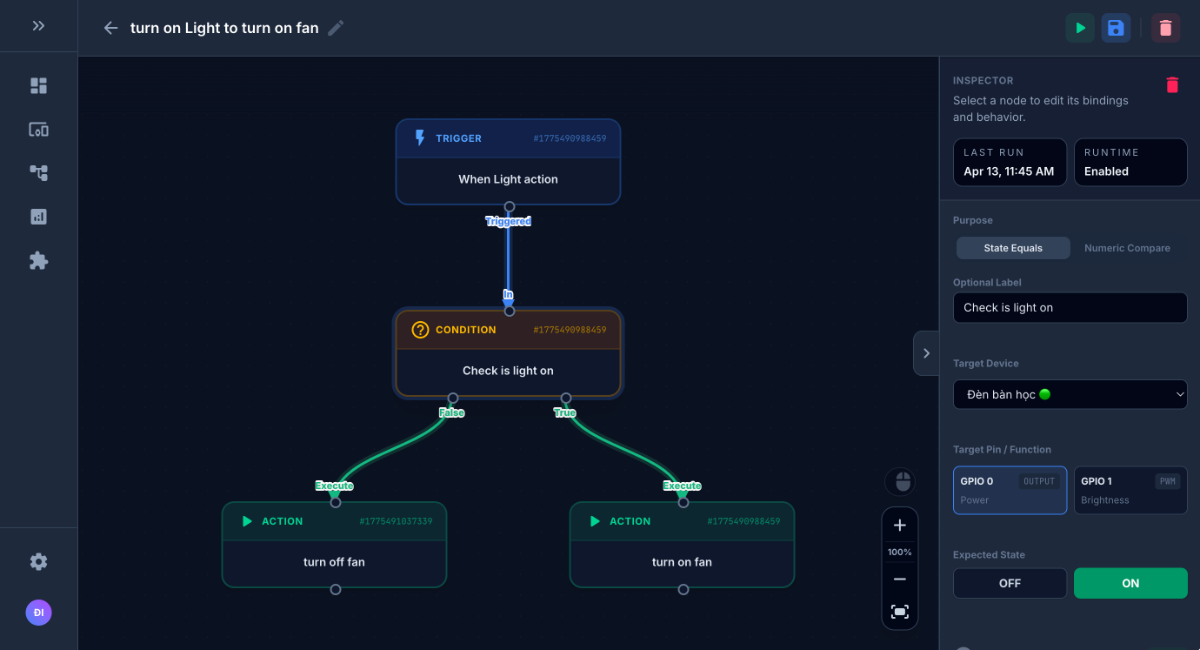

To fully connect the room, I continued to build the Visual Rule Graph Automation system with drag-and-drop logic: Trigger (Activation) -> Condition (Condition) -> Action (Action). Now, with just a few mouse drag-and-drop actions, the event "sensor detects motion" has sent a signal to activate the "turn on Yeelight" function right at the Local Server,
